A cheap hand dryer can become expensive the first time a technician has to visit 40 washrooms to replace worn motor brushes.
But the opposite mistake happens too. A buyer pays more for brushless motors across a small, low-traffic office project—then never uses the dryers enough to recover the premium.
So, which costs less?
The honest answer: it depends on how the hand dryers will actually be used, serviced, and replaced.

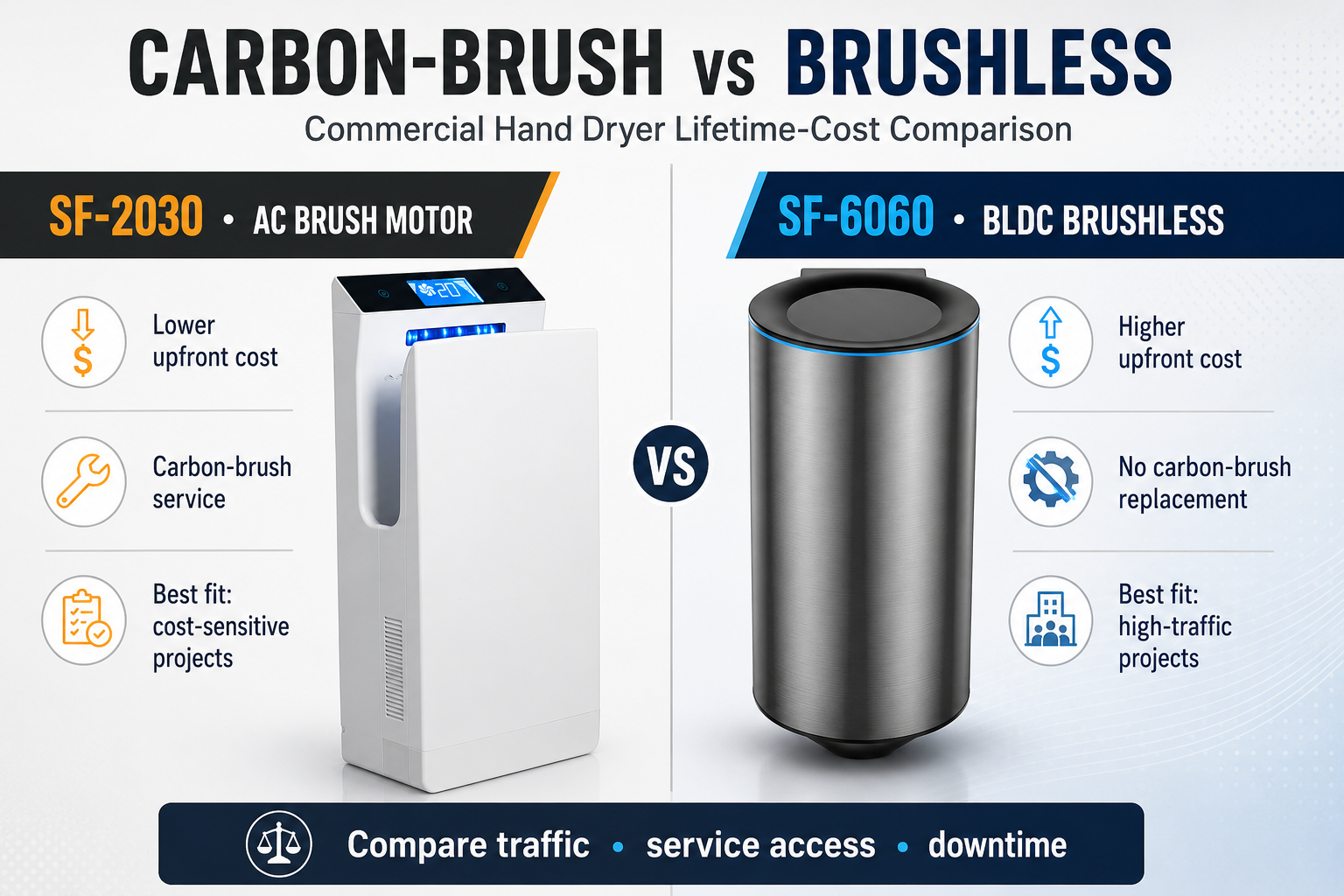

A carbon-brush motor hand dryer often costs less upfront. A brushless motor eliminates carbon-brush wear and may reduce planned motor maintenance. Neither fact settles the lifetime-cost question.
The useful comparison is not purchase price versus advertised motor life. It is:
Which hand dryer delivers the lowest cost per reliable drying cycle in this particular facility?
That shift matters. It turns a generic motor comparison into a commercial decision.
Project condition | Likely direction | Main reason |
|---|---|---|
Low traffic, few dryers | Carbon-brush may cost less | The lower purchase price may never be overtaken by maintenance |
High traffic, many dryers | Brushless may offer better value | Brush-related service costs multiply across the fleet |
Easy access to local technicians | Carbon-brush remains practical | Inspection and repair may be inexpensive |
Remote or restricted installations | Brushless becomes more attractive | Each service visit costs more than the replacement part |
Short project life | Carbon-brush may be sufficient | The brushless premium may not have time to pay back |
Long-term installation | Brushless deserves closer analysis | Maintenance and downtime accumulate |
Weak spare-parts support | High risk for either motor | A durable motor is not useful if the system cannot be repaired |
Unclear endurance data | Do not decide yet | A motor label is not test evidence |
Notice the wording: may, not always.
A well-built carbon-brush hand dryer can be a better investment than a poorly engineered brushless model. Brushless technology removes one wear mechanism. It does not remove bearings, controllers, sensors, fans, wiring, or manufacturing defects.
Most quotations show a unit price. Facilities pay for much more.
A practical lifetime-cost model includes:
Lifetime Cost = Purchase + Installation + Energy + Planned Maintenance + Parts + Labor + Downtime + Replacement
For a multi-unit project:
Fleet Lifetime Cost = Number of Units × Per-Unit Lifetime Cost
To compare projects with different traffic levels, calculate:
Cost per 10,000 Drying Cycles = Lifetime Cost ÷ Expected Total Cycles × 10,000
This is a more useful B2B metric than motor hours alone.
Suppose two dryers have similar purchase prices but different drying times. Or one needs periodic brush inspection while the other uses a more expensive controller. Those differences become commercially meaningful only when tied to actual use, labor, and replacement conditions.
That is why we recommend beginning with four questions:
How many times will each dryer operate per day?
How many units will be installed?
What does one service visit cost?
What happens when a dryer stops working?
If those answers are missing, the lifetime-cost estimate is mostly guesswork.
The engineering difference is simple enough.
A brushed motor uses carbon brushes and a commutator to transfer current to the rotating part of the motor. The brushes remain in physical contact with the commutator while the motor runs.
That contact creates wear.
Depending on the design, the brushes may be replaceable. This can extend the useful life of the motor, but it also creates an inspection and maintenance requirement.
Commercial advantages include:
Mature technology
Relatively simple control
Lower initial cost in many applications
Replaceable wear components in some designs
Good fit for cost-sensitive projects
The drawback is not that every brushed motor fails quickly. The real issue is uncertainty around when service will be needed—and what that service will cost.
A brushless motor, often described as BLDC or digital, uses electronic commutation. A controller switches current through the motor windings instead of relying on carbon brushes.
No carbon brushes means no carbon-brush replacement.
It can also support precise speed control and high-speed airflow systems. However, brushless designs depend on electronic control components that should be included in the service and spare-parts discussion.
Engineering comparisons of brushed and brushless motors identify brush and commutator wear as a key limitation of brushed designs. They also note the higher electronics cost associated with brushless control systems. The MPS engineering guide to brushed and brushless DC motors provides a useful technical explanation.
For buyers, the takeaway is straightforward:
A brushless motor removes brush wear. It does not make the complete hand dryer immune to failure.
A supplier may advertise 5,000, 10,000, or 20,000 motor hours. Large numbers look reassuring. They often raise more questions than they answer.
Was the motor tested on its own?
Was it installed in the complete dryer?
Did it run continuously, or was it repeatedly switched on and off?
What was the ambient temperature? Was the air inlet restricted? Was the heater operating? What counted as failure?
Commercial hand dryers rarely run continuously for thousands of hours. They operate in short, repeated cycles. In a busy washroom, the number of starts may matter as much as total runtime.
The complete dryer also contains other parts:
Bearings
Motor controller or PCB
Fan or impeller
Infrared sensor
Heating element
Thermal protection
Internal wiring
Air inlet
Mounting structure
A long motor rating cannot guarantee that every one of those components will last equally long.
For procurement purposes, complete-unit endurance evidence is more useful than a motor-life headline.
Replacement brushes are usually small. The service event is not.
A technician may need to:
Locate the affected unit
Isolate the electrical supply
Open the dryer
Remove dust
Inspect brush wear
Check the commutator
Install the correct replacement brushes
Reassemble the unit
Test the dryer
Record the maintenance work
The invoice can include far more than parts:
Technician travel
Labor
Site access
Security clearance
Facility-management time
Temporary signage
Shipping
Washroom disruption
Follow-up testing
Here is the less obvious point: a replaceable carbon brush can be either a strength or a weakness.
If the facility has an in-house technician, local parts and easily accessible dryers, brush replacement may be a practical way to extend product life.
If the units are spread across multiple hotels, schools, or cities, the service visit may cost far more than the brushes. In that situation, eliminating brush maintenance becomes much more valuable.
A real hand dryer maintenance procedure may include checking brush length and replacing brushes once they reach a specified condition. But this is model-specific. There is no responsible universal replacement interval for every carbon-brush hand dryer.
Before buying, ask:
Question | Why it matters |
|---|---|
Are the carbon brushes replaceable? | Some products require full motor replacement |
What condition triggers replacement? | A fixed number of months may be misleading |
How is brush wear inspected? | Determines labor and access requirements |
What is the replacement-brush part number? | Prevents future compatibility problems |
How long will parts remain available? | Critical for long-term projects |
Must the commutator also be inspected? | New brushes may not solve wider motor wear |
Can the motor be replaced as one assembly? | Provides another repair route |
Is this work covered by warranty? | Clarifies who pays |
Buyers can estimate how many carbon-brush service events it would take to recover the higher purchase price of a brushless model.
Start with:
Brushless Price Premium = Brushless Unit Price − Brushed Unit Price
Then estimate:
Cost per Brushed-Motor Service Event = Parts + Labor + Travel + Downtime
The basic break-even point is:
Break-Even Service Events = Brushless Price Premium ÷ Cost per Brushed Service Event
For a fleet, multiply both sides by the number of units.
This is not a complete TCO model. Energy, failure probability, and replacement cost still matter. But it exposes the commercial logic very quickly.
If one brush-related service event costs more than the brushless premium, the upgrade may pay back early.
If the project is unlikely to require a single brush service during its working life, the lower-priced carbon-brush model may remain the better deal.
And if no one knows the expected service conditions? That is the next question to resolve—not a reason to invent a lifespan number.
“Maintenance-free motor” is a phrase buyers should handle carefully.
It may mean the motor has no carbon brushes to inspect or replace. It should not be interpreted as “the hand dryer can never require maintenance.”
A brushless hand dryer can still be affected by:
Bearing wear
Controller failure
Sensor problems
Blocked air inlets
Fan imbalance
Loose mounting
Wiring issues
Moisture
Dust
Incorrect voltage
Poor cleaning practices
Serviceability matters here too.
Ask whether the controller is:
Integrated into the motor
Installed on a separate PCB
Available as a spare part
Matched to a specific motor version
Replaceable locally
Covered by the same warranty as the motor
A low-maintenance brushless system with no available replacement controller may create a different kind of lifecycle risk. The buyer avoids brush replacement but could face a complete motor or product replacement after an electronic failure.
That does not make brushless technology a poor choice. It means the supplier should explain the entire repair strategy—not just the absence of brushes.
Brushless motors can reduce some mechanical and electrical losses, but motor type alone does not determine the energy use of a hand dryer.
The complete result depends on:
Motor power
Heater power
Air speed
Air-outlet geometry
Drying time
Sensor response
Automatic shutoff
Standby consumption
User behavior
A lower-wattage dryer is not automatically cheaper to operate. If it runs much longer per user, the energy per completed drying cycle may be higher.
A high-speed motor is not automatically efficient either. Poor airflow design can waste motor output.
Ask the supplier for:
Total rated power
Motor power
Heater power
Heater-on and heater-off data
Measured drying time
Standby consumption
Energy per drying cycle
Test method
Then compare the same operating mode under the same conditions.
The useful question is not “Which motor uses fewer watts?”
It is:
How much energy does the complete hand dryer use to deliver an acceptable result?
Traffic is low. The dryers are easy to reach, and replacement would cause little disruption.
A quality carbon-brush model may be the lower-cost choice. The office may never accumulate enough operating cycles for the brushless premium to pay back.
Buying the most advanced motor simply because it sounds better could be unnecessary.
Now the calculation changes.
Even moderate usage becomes significant across 30 dryers. Maintenance must be coordinated, parts must be stocked and technicians must move between units.
The buyer should compare:
Fleet-level service time
Noise
Parts availability
Warranty response
Expected replacement rate
Access to guest or student areas
Complete-unit endurance evidence
Brushless may offer better value—but only if the controller, bearings, and after-sales system are credible.
Traffic is heavy. Units may run repeatedly during short peak periods. A failed dryer shifts demand to the remaining machines.
Here, downtime and service access can outweigh a modest purchase-price difference.
A brushless system deserves serious consideration when it is backed by:
Repeated-cycle testing
Stable production specifications
Fast replacement support
Available motor and controller assemblies
Clear warranty terms
For a broader assessment of drying speed, sensor stability, noise, housing, and supplier capability, see our guide on how to choose a commercial hand dryer manufacturer.
A useful comparison sheet should include buyer inputs and supplier evidence.
Input | Carbon-brush model | Brushless model |
|---|---|---|
Unit purchase price | Buyer input | Buyer input |
Number of units | Buyer input | Buyer input |
Installation cost | Buyer input | Buyer input |
Daily drying cycles | Buyer estimate | Buyer estimate |
Evaluation period | 5/7/10 years | 5/7/10 years |
Energy per cycle | Supplier evidence | Supplier evidence |
Planned inspections | Supplier evidence | Supplier evidence |
Parts per service | Supplier quotation | Supplier quotation |
Labor and travel | Buyer estimate | Buyer estimate |
Expected replacement units | Risk assumption | Risk assumption |
Downtime cost | Buyer estimate | Buyer estimate |
Fleet lifetime cost | Calculated | Calculated |
Cost per 10,000 cycles | Calculated | Calculated |
Do not hide uncertainty inside a confident-looking total.
Run three scenarios:
Low use
Expected use
Heavy use
Then look for the assumption that changes the answer.
If brushless only becomes cheaper when the carbon brushes require several service visits, verify that service expectation.
If the carbon-brush model only remains cheaper when downtime is valued at zero, ask whether that reflects the facility.
The sensitive variable is usually where more evidence is needed.
When comparing commercial hand dryer motor types, evaluate four conditions.
Estimate completed drying cycles, not just building visitors.
Consider peak traffic. A stadium at half-time and an office over eight hours may record similar daily totals but create very different loads.
How difficult is it to reach, open and repair the dryer?
A service event in a local office is not equivalent to a visit across a hotel chain or transport network.
What happens while the dryer is unavailable?
One failed unit may be a minor inconvenience—or it may create queues, complaints and emergency replacement work.
Can the supplier prove the claims attached to the model?
Clear test conditions, spare-parts information and maintenance instructions often matter more than an impressive but unexplained lifespan figure.
This fourth variable is easy to overlook. It should not be.
A slightly less ambitious specification backed by model-specific evidence may represent a lower purchasing risk than a large number with no test method.
Request:
Exact motor type
Motor model number
Carbon-brush or BLDC confirmation
Rated voltage
Motor datasheet
Controller configuration
Bearing information
Ask for:
Complete-unit test, not just an isolated motor test
Start-stop cycle count
Cycle duration
Cooling interval
Test voltage
Ambient temperature
Air-inlet condition
Operating load
Failure criteria
Exact product configuration
Confirm:
Inspection requirements
Carbon-brush replacement method
Brush part number
Motor assembly part number
Controller part number
Cleaning access
Required technician skill
Expected service time
Verify:
Warranty period
Warranty exclusions
Spare-parts availability
Replacement lead time
Technical support
Batch-change notification
Approved-component control
A supplier who says only “brushless lasts longer” has not yet provided enough information for a commercial decision.
A sample test cannot reproduce seven years of service. It can still reveal weak assumptions.
Do more than switch it on once.
Check:
Repeated sensor activation
Startup consistency
Abnormal vibration
Changes in sound
Actual drying time
Exterior temperature
Automatic shutoff
Air-inlet access
Dust-cleaning access
Cover removal
Motor and controller accessibility
Mounting stability
Voltage configuration
Spare-parts documentation
If the project is intended for high traffic, test repeated operation. If noise matters, test the sample in a comparable room—not only in a noisy warehouse.
Record the model number, internal configuration, and test conditions. If the sample is modified, record the revision.
The approved sample reduces risk only when mass production follows the same approved specification.
Buyers can compare commercial hand dryer models for different traffic levels before requesting samples.
For an importer or distributor, this does not have to be an either-or decision.
A two-tier product range can make more commercial sense:
Carbon-brush model for standard, lower-traffic and price-sensitive projects
Brushless model for high-traffic, premium or low-maintenance positioning
The two models need distinct roles. Otherwise, they compete only on price.
A customer should be able to understand why the brushless upgrade costs more:
Less carbon-brush maintenance
Better fit for repeated use
Stronger long-term service proposition
Different warranty or support package
Better alignment with high-traffic projects
Do not sell “brushless” as a magic word. Connect it to an operating problem the buyer actually has.
A brushless motor hand dryer is more likely to justify its premium when:
Traffic is high
Many units are installed
Technician access is expensive
Downtime matters
The project will run for many years
Carbon-brush service would be difficult
The supplier provides credible test and spare-parts support
A carbon-brush motor hand dryer may still cost less when:
Traffic is low
The installation is small
The initial budget is tight
Local service is easy
Replacement brushes are available
The project life is limited
The product is well built and properly supported
The lower-cost choice is not automatically the unit with the lowest quotation. Nor is it automatically the one carrying the “brushless” label.
It is the system that delivers the required drying performance, survives the expected workload and can be maintained at a predictable cost.
That is the number worth comparing.
It uses physical carbon brushes and a commutator to transfer electrical current and maintain motor rotation. The brushes gradually wear and may require inspection or replacement, depending on the motor design.
No. Brushless motors avoid carbon-brush maintenance but usually cost more upfront. The premium is easier to recover in high-use, multi-unit or expensive-to-service installations.
There is no universal interval. Brush wear depends on the motor, load, operating speed, start-stop frequency, temperature, dust, and commutator condition. Ask for instructions for the exact model.
They do not require carbon-brush replacement. The complete dryer may still require cleaning, inspection, or repair involving the sensor, air inlet, controller, bearings, fan, wiring or filter.
No. Noise also comes from motor speed, bearings, fan balance, airflow, and housing vibration. Compare noise figures only when the test distance and operating conditions are stated.
A well-designed brushless system may offer better lifetime value where usage, service labor and downtime are high. The buyer should still verify complete-unit endurance, controller support, spare parts, and warranty terms.
The term “digital motor” is commonly used for electronically controlled brushless systems, but it is not a complete technical specification. Ask for the exact motor architecture and controller details.
Request the motor specification, complete-unit endurance conditions, maintenance instructions, replacement-part numbers, warranty terms, and approved sample configuration.
Share your target country, restroom type, estimated daily use, project quantity, voltage, and maintenance expectations with HUIPU.
We can help you compare suitable carbon-brush and brushless commercial hand dryer models, review sample requirements, and prepare the specifications needed for a bulk or OEM/ODM project.
Explore HUIPU commercial hand dryers and request a project quotation.
