Your wall-mounted hair dryer sample has arrived. The housing looks clean, the motor starts, and the specifications seem correct.
So, is the sample ready for approval?
Not quite.
For hotel equipment distributors, wall-mounted hair dryer sample testing involves more than switching on the appliance. A hotel hair dryer must work properly as a complete system, including the wall holder, coiled cord, operating switches, heating controls, and safety features.
A dryer that performs well on a workbench but becomes awkward to use after wall installation is hardly a successful sample.
This guide walks hotel equipment distributors through seven practical inspection steps: what to check, how to perform each test, which results to record, and when to contact the manufacturer.
Two HUIPU wall-mounted hair dryers, RCY-67250 and RCY-67588D, serve as reference models to illustrate the process.
Before starting, use a consistent inspection sequence. A simple checklist helps prevent small but important details from getting overlooked.
Step | What to Check | What You Need to Confirm |
|---|---|---|
1 | Model, electrical ratings, and documents | The correct sample and configuration arrived |
2 | Housing, wall base, cord, and accessories | No visible defects or missing parts |
3 | Wall holder and coiled cord | Secure mounting and comfortable handling |
4 | Switches, heating modes, and shut-off functions | All operating controls work as designed |
5 | Airflow, heating performance, and noise | Actual performance meets agreed requirements |
6 | Durability evidence and maintenance | Reliability claims have supporting evidence |
7 | Test records and sample approval | A clear Pass, Hold, or Reject decision |
Start with the checks that require no power.
Inspect the product label, electrical rating, housing, and accessories first. A damaged power cord or incorrect voltage rating is a reason to stop before plugging in the sample.
Begin with the rating label on the wall-mounted hair dryer and the specification sheet supplied by the manufacturer.
Check five details:
Model number and product configuration
Rated voltage and frequency
Rated power
Plug-in or hardwired connection
Available heating and speed settings
The sample should match the version you requested.

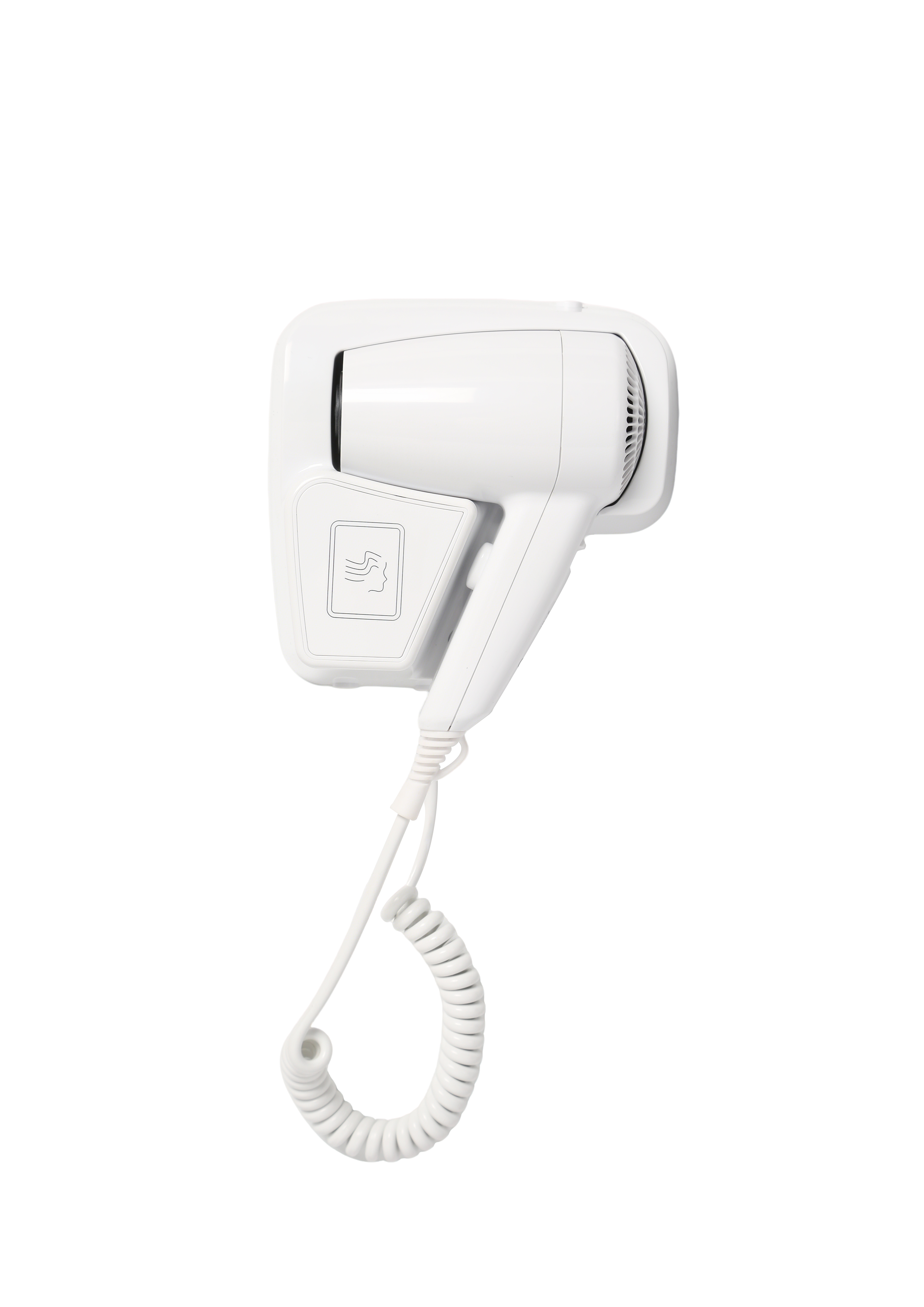

For example, HUIPU offers the following two wall-mounted hair dryer models:
Specification | RCY-67250 | RCY-67588D |
|---|---|---|
Rated power | 1200W | 1800W |
Rated voltage | 220–240V | 220–240V |
Listed airspeed | 15.6 m/s | 15.6 m/s |
Heat settings | 2 | 3 |
Speed settings | 2 | 2 |
Housing material | ABS | ABS |
The RCY-67250 has two heat settings and two speed settings. The RCY-67588D offers three heat settings and two speed settings.
That difference matters during functional testing. An RCY-67588D sample with the wrong control configuration needs clarification before approval.
Check the voltage before the first power-on test.
A 220–240V sample must be connected to a suitable supply, not directly to an incompatible 110–120V outlet.
Next, review the product's identification and compliance information.
For the HUIPU RCY-67250 and RCY-67588D, the manufacturer identifies CE conformity documentation, including LVD and EMC test evidence, together with CB and RoHS-related documentation.
Ask for the relevant documents and compare the model numbers, electrical configurations, referenced standards, and report details with the physical sample.
A valid-looking document is not enough when the model or electrical version does not match.
The distributor's goal is straightforward: connect every compliance document to the exact sample under evaluation.
Before proceeding, assign a sample ID and record the inspection date, model, configuration, and sample version.
Basic inspection requires only the product, its documentation, and a record sheet. A tape measure can help with installation and cord-reach checks. Instruments such as a sound level meter, anemometer, power meter, or suitable temperature probe are useful when quantitative measurements are required.
Why this step matters: If the sample identity or electrical configuration is incorrect, later performance measurements may not be relevant to the product you intend to purchase.
Place the wall-mounted hair dryer under good lighting and inspect the housing from several angles.
Look closely at:
Cracks, scratches, or visible impact damage
Uneven housing joints or gaps
Sharp edges or poorly finished plastic surfaces
Loose buttons or poorly fitted components
Air inlet and outlet conditions
Cord entry points and strain-relief parts
Both HUIPU reference models use ABS housings, so inspect the plastic surfaces and assembled joints carefully.
A small cosmetic mark may require an appearance review. A cracked housing beside an electrical connection is a different matter.
That is a stop-and-report issue, not a cosmetic complaint.
Take photographs of any visible damage and record the exact location.
A wall-mounted hair dryer is not just a handheld appliance with an extra plastic bracket.
The wall holder is part of the product's daily operating system.
Inspect the holder for visible cracks, damaged fixing holes, distorted mounting surfaces, and poor handpiece fit.
HUIPU wall holders are generally secured using screws or suitable wall anchors. Confirm that the supplied mounting parts match the product instructions.
Also check the accessory list.
Few things are more frustrating for a hotel distributor than receiving a sample that looks complete, only to discover that a necessary mounting component is missing when installation begins.
Record missing parts immediately.
Check the coiled cord running between the wall holder and the handpiece.
Look for damaged insulation, irregular cable surfaces, exposed conductors, loose protective sleeves, or visible strain at the cord entry points.
For plug-in wall-mounted hair dryers, inspect the external power cord and plug as separate components.
Keep this inspection simple. A visual check and normal handling are appropriate at this stage.
Deliberately pulling or twisting the cable beyond normal use does not make the inspection more reliable. It can create damage that would not occur during ordinary operation.
A complete sample should arrive ready for normal installation and testing, without visible electrical defects or missing essential parts.
The wall holder and coiled cord deserve their own inspection.
Hotel guests interact with both components whenever they use a wall-mounted hair dryer. Even a well-performing motor cannot compensate for a handpiece that is difficult to reach or return.
Install the wall holder on a suitable test surface following the manufacturer's instructions.
Select screws or wall anchors appropriate for the mounting surface. Qualified personnel should handle electrical installation, especially hardwired connections.
Once the wall base is properly installed:
Check that the mounting base sits securely against the surface.
Remove the handpiece from the holder.
Return the handpiece to its normal storage position.
Repeat the movement several times.
Observe the mounting base and fixing points.
A correctly installed screw-fixed HUIPU wall holder should remain stable during normal handpiece handling.
If the wall base moves noticeably, check the fixing method and installation surface first.
Loose screws and an unsuitable mounting surface can produce symptoms that look like a product defect.
Record the mounting material, fixing method, and observed movement. A short video is helpful if the problem continues.
HUIPU purchases coiled cords according to a nominal 2-meter specification for relevant wall-mounted hair dryer designs.
The practical inspection, however, concerns the cord's comfortable working range after installation.
A nominal 2-meter cord is not a promise of 2 meters of comfortable reach.
Test the coiled cord in a realistic position:
Install the wall-mounted hair dryer at the intended test height.
Remove the handpiece.
Move the handpiece toward the position where a hotel guest would normally dry their hair.
Observe how the coiled cord extends.
Check for excessive pulling force at the wall base or handpiece connection.
Return the handpiece and observe how the cord settles.
The coiled cord should allow comfortable movement without excessive strain.
Imagine a guest standing in front of a bathroom mirror. If the handpiece keeps pulling back toward the wall, the guest will notice immediately.
That is the kind of problem a distributor wants to discover during sample testing—not after installation across a hotel.
Record the wall holder position, practical reach, handling comfort, and any abnormal cable tension.
Avoid stretching the spring cord beyond its intended working range to achieve an impressive measurement.
Take the handpiece from the wall holder several times, then return it to the correct position.
Check whether:
The handpiece lifts smoothly.
The coiled cord stays clear of the normal hand movement.
The handpiece returns without forcing or twisting.
The holder supports the handpiece securely.
The motion should feel natural.
A guest should not have to fight the spring cord or hunt for the correct angle just to put the dryer away.
When the wall holder and coiled cord pass these practical checks, the distributor has evidence that the physical arrangement supports normal hotel use—not simply that the hair dryer can be mounted on a wall.
The operating controls require close attention.
HUIPU's described wall-mounted hair dryer safety arrangement uses two switches:
1. Wall-holder safety switch: The wall-holder interlock enables normal operation when the handpiece is removed.
2. Handpiece microswitch: The hair dryer operates while the user presses and holds the microswitch on the handle.
For samples fitted with this control arrangement, follow the sequence below.
Test Action | Expected Result |
|---|---|
Keep the handpiece in the wall holder | Hair dryer remains stopped |
Remove the handpiece without pressing the microswitch | Hair dryer remains stopped |
Press and hold the microswitch | Hair dryer starts operating |
Release the microswitch | Hair dryer stops |
Return the handpiece to the wall holder | Handpiece is stored correctly, and the holder interlock returns to its intended state |
Perform the sequence only after proper installation and safe electrical connection.
Watch the microswitch behavior carefully.
If the motor continues running after the handpiece microswitch is released, the sample has failed an important operating check.
Stop the test and report the abnormal behavior.
A hotel guest should never need a trick to make a hair dryer stop running.
The wall-holder safety switch is an operating interlock. Complete electrical isolation from the mains requires a separate assessment of the product's electrical design.
Never bypass the wall-holder switch or interfere with the microswitch during testing.
Test every available speed and heat setting.
For HUIPU RCY-67250, verify the two speed settings and two heat settings.
For HUIPU RCY-67588D, verify the two speed settings and three heat settings.
Each control should respond consistently, with an observable change corresponding to the selected mode.
Check for sticking controls, unexpected interruptions, or inconsistent responses.
A switch that works only after several attempts is not ready for approval simply because the dryer eventually starts.
If the sample has a cool-air function, include the cool-air mode in the test record.
Some wall-mounted hair dryer configurations include additional features such as a night light, USB connection, or shaver socket.
These features are optional and model-specific.
Check only the features actually supplied with the sample, using the appropriate instructions and electrical ratings.
A clear functional test record should show which features were tested, which features were not included, and whether the available functions operated correctly.
The goal is simple: every control promised for the approved configuration must work as specified.
A wall-mounted hair dryer can pass every appearance check and still disappoint in actual use.
This is where performance testing becomes important.
For meaningful results, test each sample under defined conditions. Keep the measurement method, operating mode, distance, and surroundings consistent when comparing products.
Start the wall-mounted hair dryer and test each available speed setting.
Observe whether the airflow starts smoothly and remains consistent.
Listen for irregular motor sounds. Check for unusual vibration or unexpected airflow fluctuations.
If an anemometer is available, measure the airspeed at a defined position.
Record:
Model number
Selected speed setting
Distance from the outlet
Measurement conditions
Airspeed reading
Any unusual behavior
The HUIPU RCY-67250 and RCY-67588D specifications both list an airspeed of 15.6 m/s.
That figure provides a reference, but an accurate comparison requires the same measurement method used for the specification.
Same hair dryer. Different measuring distance. Different reading.
A number without its test conditions tells only part of the story.
If a sample's measured airflow differs significantly from the supplied specification, share the measurement method and recorded results with the manufacturer before concluding.
Run the wall-mounted hair dryer under normal operating conditions.
Switch through the available heat settings and observe whether each mode responds correctly.
For measured temperature testing, use suitable equipment and a consistent method.
Record the heat setting, measurement position, ambient conditions, operating time, and temperature reading.
A single outlet-temperature figure is not enough to describe overall heating performance.
Pay attention to unstable heating, unexpected interruptions, or an unusual burning smell.
Smoke, obvious overheating, or other unsafe behavior calls for an immediate stop to the test.
The sample needs technical assessment before further operation.
Hotel bathrooms are often close to guest sleeping areas. An unusually noisy hair dryer can become a recurring complaint.
Run each sample at the same speed setting and listen carefully.
Check for rattling, scraping, excessive vibration, or sharp high-frequency sounds.
For measured comparisons, use the same sound level meter, room, operating mode, and measurement distance.
Include ambient noise conditions in the test record.
A measurement taken close to the outlet cannot be fairly compared with a manufacturer's figure taken much farther away.
The number matters. So does the sound itself.
A sharp mechanical rattle can be distracting even when a simple sound-level reading appears acceptable.
If several samples are being compared, a practical drying test can add another layer of information.
Use comparable damp hair swatches with consistent starting conditions.
Keep the dryer distance, operating mode, initial moisture level, and drying endpoint consistent.
Record the time needed to achieve the same result.
A higher wattage alone does not guarantee faster drying. Airflow design, heating characteristics, and operating settings also play a role.
For distributors, the real question is not just whether the RCY-67588D has a higher rated power than the RCY-67250.
The question is whether each sample delivers the expected performance for its confirmed configuration.
Specification sheets tell you what to expect. Consistent testing shows what the sample actually delivers.
A wall-mounted hair dryer may pass a short performance test without revealing every potential long-term reliability issue.
That is why durability evidence deserves a separate review.
A few minutes of successful operation are a good start. They are not a service-life test.
Repeat normal handpiece removal, return, and switch operation several times.
Watch for inconsistent controls, poor handpiece fit, or visible strain at the cord connections.
Check whether the air inlet can be cleaned according to the manufacturer's instructions.
For hotel operators, practical maintenance matters. A component that is difficult to inspect or clean may create unnecessary work for housekeeping and maintenance teams.
The distributor's own handling checks help identify immediate problems.
Controlled endurance testing provides deeper reliability evidence.
Power cords and coiled cords experience repeated movement during normal use.
The highest mechanical stress often occurs near the cord entry and strain-relief areas.
HUIPU's technical materials describe 20,000-cycle flexing tests for relevant non-replaceable power cord designs. HUIPU also reports conducting 20,000-cycle flexing tests on relevant coiled cords and plug-in power cords.
These tests are intended to evaluate resistance to repeated bending and identify potential problems involving conductors, insulation, strain relief, and cable connections.
See HUIPU's Real Factory Power Cord Flexing Test
HUIPU power cord flexing test
For formal sample approval, the corresponding test record provides the essential technical details.
Ask the manufacturer to identify:
Product model and test sample version
Cord type and bending location
Applicable test method
Completed test cycles
Test conditions and acceptance criteria
Final inspection and test results
IEC 60335-1 Clause 25.14 addresses flexing protection for relevant supply-cord constructions. The exact test procedure is determined by the applicable requirements and cord attachment.
The wall-holder-to-handpiece coiled cord and the external supply power cord are different cable applications. Each requires relevant evidence for its construction and intended use.
For distributors, the practical approach is to inspect the cable condition, review the manufacturer's endurance evidence, and confirm that the evidence covers the sample being approved.
20,000 flexing cycles is a meaningful test specification. The corresponding test report is what confirms the result.
The power cord is only one part of the reliability picture.
The hair dryer's motor, heating system, operating switches, and internal components also need to perform consistently over time.
HUIPU carries out hair dryer life-testing activities as part of its factory testing process.
See HUIPU's Real Factory Hair Dryer Life Test
For sample approval, request the test conditions and results associated with the relevant model.
Useful questions include:
How was the operating cycle defined?
How long did the test run, or how many cycles were completed?
Which components and performance changes were monitored?
What conditions counted as a pass or failure?
Did the tested product match the sample configuration?
The factory video demonstrates a testing activity. The matching technical record supplies the evidence needed to assess the stated endurance result.
A distributor wants fewer surprises after delivery.
Testing records make that expectation easier to evaluate.
HUIPU wall-mounted hair dryer designs include overheating protection.
Confirm the specific protection configuration and applicable test documentation for the sample model.
A normal user inspection should not involve deliberately blocking the air inlet, obstructing airflow, or forcing the dryer into an overheating condition.
Protective-function and abnormal-operation tests belong in controlled professional testing procedures.
Check the relevant reports and technical information instead.
Durability also affects what happens after installation. Replacing a damaged cord, repairing a switch, or servicing a faulty unit can involve more than the original product price.
For the broader financial implications, see our hotel wall-mounted hair dryer total cost of ownership guide.
The sample has been inspected. The wall holder has been tested. The operating modes and performance have been checked.
Now comes the decision.
A sample is not approved just because most checks went well.
The approval decision must be based on the agreed requirements and documented findings.
For each inspection item, record:
Expected requirement
Test method and conditions
Actual result
Pass, Fail, or Not Verified status
Photo, video, or measurement evidence
Required follow-up action
Clear records prevent unnecessary back-and-forth.
Consider a wall holder that moves during testing.
Writing "wall holder is loose" gives the manufacturer little information to investigate.
A more useful report identifies the mounting surface, fixing method, normal handpiece movement, and exact point where the wall base shifts.
The same applies to airflow, heating, noise, and switch problems.
A vague complaint starts an argument. A clear test record starts an investigation.
When a wall-mounted hair dryer sample fails a check, describe the problem in practical terms.
For example:
Wall-holder issue: "The wall base moves during normal handpiece removal after installation on the specified test surface."
Coiled-cord issue: "The handpiece cannot reach the intended mirror position without excessive tension at the wall-base connection."
Microswitch issue: "The motor continues running after the handpiece microswitch is released."
Performance issue: "The measured airspeed differs from the supplied specification under the documented test conditions."
These descriptions give the manufacturer something specific to investigate.
Include the sample model, inspection conditions, supporting evidence, and requested corrective action.
Not every problem requires the same response.
Missing documentation may call for verification. An incorrect configuration may require a replacement sample. Unexpected electrical behavior calls for an immediate stop and technical review.
Use three clear approval outcomes.
Decision | When to Use It | Distributor's Next Action |
|---|---|---|
Pass | All mandatory requirements are verified and satisfied | Approve the sample and record the exact version |
Hold / Retest | Results are unclear, documents are missing, or a correctable issue remains | Request clarification, corrective action, or retesting |
Reject | The sample fails a critical requirement or a major issue cannot be resolved acceptably | Reject the sample or request a revised version |
A missing document means a required verification remains incomplete. It does not, by itself, establish a physical product defect.
Similarly, a short functional inspection cannot demonstrate an entire service life or replace formal safety testing.
After approval, preserve the sample ID, confirmed specifications, configuration details, and inspection records.
The approved version becomes the reference for later quality verification.
For the next project stage, see our hotel wall-mounted hair dryer bulk order planning guide.
Use this checklist when inspecting a wall-mounted hair dryer sample.
The checklist covers normal inspection activities and supporting documentation. Model-specific acceptance criteria must come from the agreed specifications and applicable requirements.
Inspection Item | What to Check or Record | Status |
|---|---|---|
Model and voltage | Compare the rating label with the requested specifications | |
Product configuration | Verify the heat, speed, and electrical options | |
Housing condition | Inspect finish, cracks, joints, and visible defects | |
Included accessories | Confirm the wall holder, mounting hardware, and supplied parts | |
Wall holder stability | Record mounting conditions and normal-use observations | |
Coiled cord | Check practical reach, handling, and connection points | |
Wall-holder safety switch | Verify the specified operating interlock | |
Handpiece microswitch | Confirm press-to-run and release-to-stop operation | |
Heating and speed controls | Test each available operating setting | |
Airflow | Record operating mode, test conditions, and readings | |
Heating performance | Record heat settings, observations, and measurements | |
Noise and vibration | Record unusual sounds and measurement conditions | |
Cord durability evidence | Verify the relevant flexing test records | |
Hair dryer life-test evidence | Check test conditions, cycles or duration, and reported results | |
Safety and compliance documents | Match the documentation to the sample model and configuration | |
Maintenance access | Review cleaning and normal maintenance convenience |
Inspection status codes: P = Pass; F = Fail; NV = Not Verified; N/A = Not Applicable.
Start with the model number, rated voltage, electrical configuration, product label, and visible condition.
Confirm that the sample matches the requested specifications before connecting power.
Next, inspect the wall holder, coiled cord, operating switches, heating modes, and airflow performance.
Electrical damage or a voltage mismatch must be resolved before powered testing.
Yes. A distributor can complete many initial checks through visual inspection and normal product operation.
These checks include housing condition, accessories, wall holder stability, coiled cord handling, switch response, and handpiece storage.
Measured airflow, temperature, noise, and power testing require suitable instruments and consistent methods.
Formal electrical safety and endurance verification requires appropriate professional testing and supporting documentation.
Stop operating the sample immediately if the failure raises an electrical or other safety concern.
Document the affected component, test conditions, expected result, actual behavior, and supporting evidence.
Contact the manufacturer with a specific problem description. Request a technical explanation, corrective action, or replacement sample where appropriate.
Keep the sample on hold until all mandatory requirements are verified.
A wall-mounted hair dryer that switches on is only the beginning.
For hotel equipment distributors, a proper sample inspection covers the complete product: housing, wall holder, coiled cord, operating switches, airflow, heating performance, and reliability evidence.
The most valuable part is the final decision.
Document what passed. Identify what needs attention. Resolve critical issues before approval.
HUIPU supports hotel equipment distributors with wall-mounted hair dryer specifications, configuration information, and technical communication throughout sample evaluation.
As a China professional manufacturer of wall-mounted hair dryers for hotels, HUIPU can provide you with expert technical support, guide you on how to inspect and test the samples you receive, and offer installation instructions and comprehensive after-sales service. If you need further technical confirmation, please share your sample inspection results with the HUIPU team.
